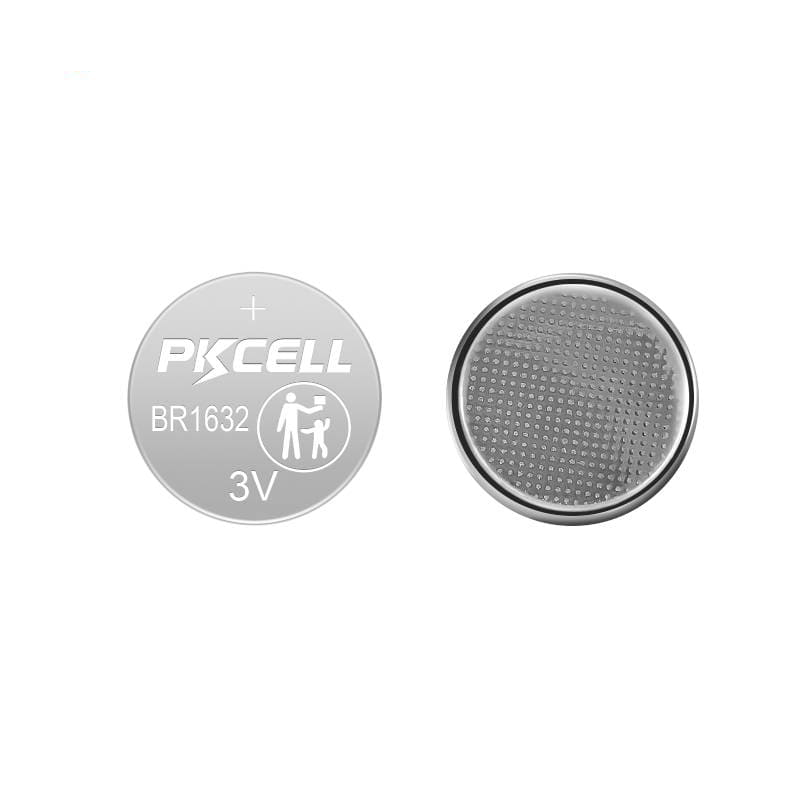

PKCELL BR1632 3V 120mAh Lithium Button Cell Battery

Short Description:

A button cell, watch battery, or coin battery is a small single-cell battery shaped as a squat cylinder, resembling a button. Stainless steel usually forms the bottom body and positive terminal of the cell; insulated from it, the metallic top cap forms the negative terminal. Button cells are used to power small portable electronics devices such as wrist watches and pocket calculators.




Product Detail

Product Tags

Brand: PKCELL
Model: BR1632
Capacity: 120mAh
Chemical Composition: Lithium
Application: Photovoltaic inverters, servers, medical equipment, military industry
Free promotional accessories: pen, flash light, T-shirt etc.
Oversea Warehouse:Canada,UniteStates,Russian,Australia
Advantages:
1) Environmental friendly,Light weight

2) High density of energy
3) Low self-discharge
4) Low internal resistance
5) No memory effect
6) Free of mercury
7) Safety assurance : No fire, No explosion, No leakage
Disply and storage:
1.Batteries shall be stored in well-ventilateddry and cool conditions

2.Battery cartons should not be piledup in severa layers,or should not exceed a specified height
3.Batteries should not be exposed to direct sun ray for a long time or placed in areas where they get wet by rain.
4.Do not mix unpacked batteries so as to avoid mechanical damage and/or short circuit among each other
Warnings and Cautions:
1.Do not short circuited, recharge, heat, disassemble nor dispose in fire

2.Do not force-discharge.
3.Do not make the anode and the cathode reversed
4.Do not solder directly

Model Discharge Standard  capacity(mAh) (MPQ) Operating Temperature Range(Low) Operating Temperature (High))
BR series–Lithium carbon fluoride battery
BR1225 62KΩ(0.05mA) 45 4800 -40℃  +85℃
BR1632 15KΩ(0.2mA) 120 4000 -40℃  +85℃
BR2032 15KΩ(0.2mA) 200 4000 -40℃  +85℃
BR2325 15KΩ(0.2mA) 170 3200 -40℃  +85℃
BR2330 15KΩ(0.2mA) 240 2000 -40℃  +85℃
BR2335 15KΩ(0.2mA) 280 2000 -40℃  +85℃
BR2450 7.5KΩ(0.4mA) 550 1400 -40℃  +85℃
BR2477 4.7KΩ(0.6mA) 1000 1000 -40℃  +85℃
